Gouda Holland cable ladder

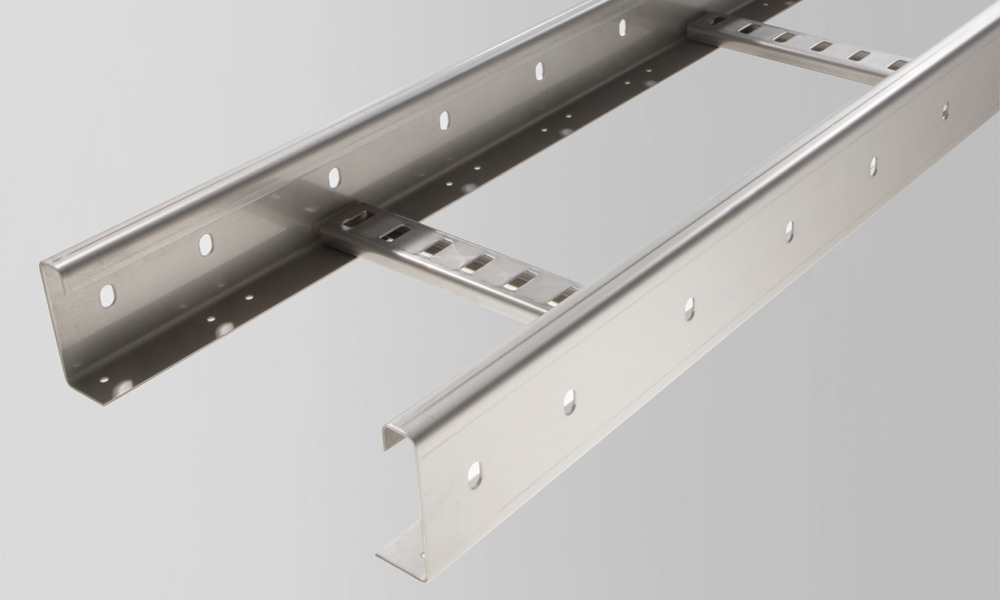

Resist

Resist is a “Medium Duty” cable ladder and has been indispensable in Food and Pharma for many years.

Equipped with perforated bottom profiles that can be used for cable attachment, lighting and tubing (cable tube). The bottom profiles are attached to the two side walls by means of four stainless steel blind rivets.

The side parts are provided with perforations along the entire length. As a result, the ladder can be shortened to any desired length, while preserving coupling perforations.

Some unique features:
    • spans of up to 3 meters
    • bottom profiles can be fitted at your choice at a center distance of 150mm or 300mm
    • bottom profiles are attached from below with four stainless steel blind rivets

Pickling and passivation of welded stainless steel parts is a standard procedure at Gouda Holland.

Available in material types
AISI304 / AISI316


Available in material thickness (mm)

Available in heights (mm)

Brochures cable ladders
Gouda Holland cable ladders

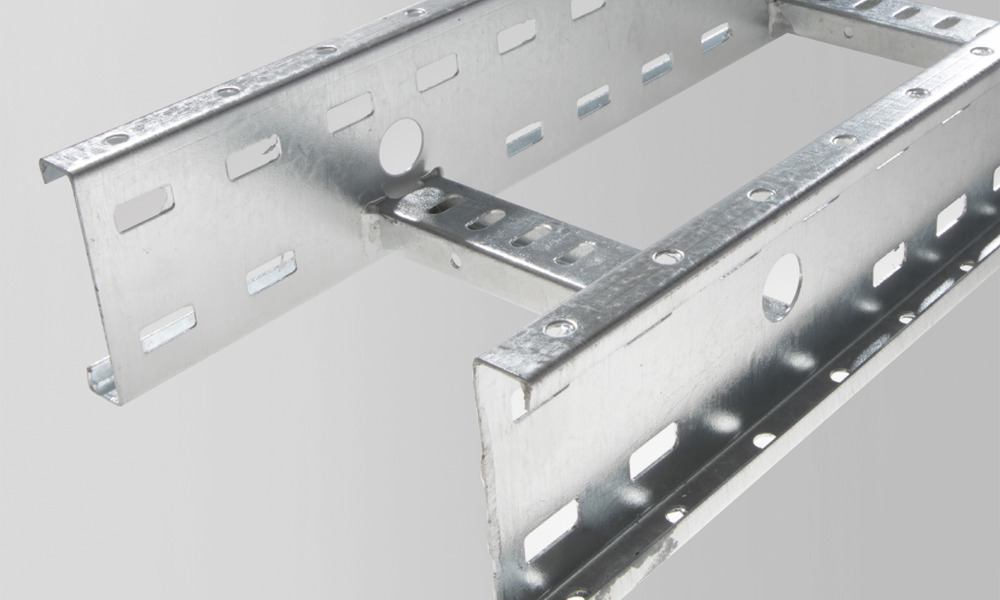

Crafty

Crafty is a "Heavy Duty" cable ladder and is used in medium to heavy industry. Due to the height of the bottom profile in combination with the shape of the side wall, this construction ensures high stability.

The Crafty, ideal for renovation projects. The various parts can be delivered as semi-finished products on site, and offer the option of installing the cable ladder around cable(s) and piping on site.

Some unique features:
    • spans of up to 6 meters
    • high stability due to construction method (height bottom profile in combination with the v-shape)
    • bottom profile and side walls are joined by connecting wedges
    • simple (dis)assembly of the bottom profiles

Pickling and passivation of welded stainless steel parts is a standard procedure at Gouda Holland.

Available in material types
Hot dip galvanized / AISI304 / AISI316


Available in material thicknesses


Available in heights (in mm)
H100 / H130


Brochures cable ladder
Gouda Holland cable ladders

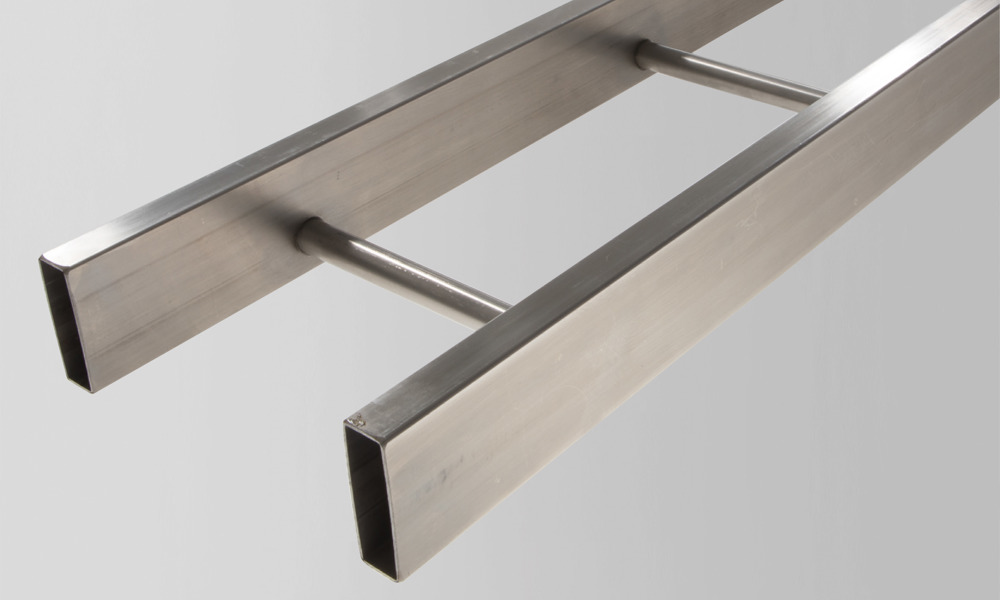

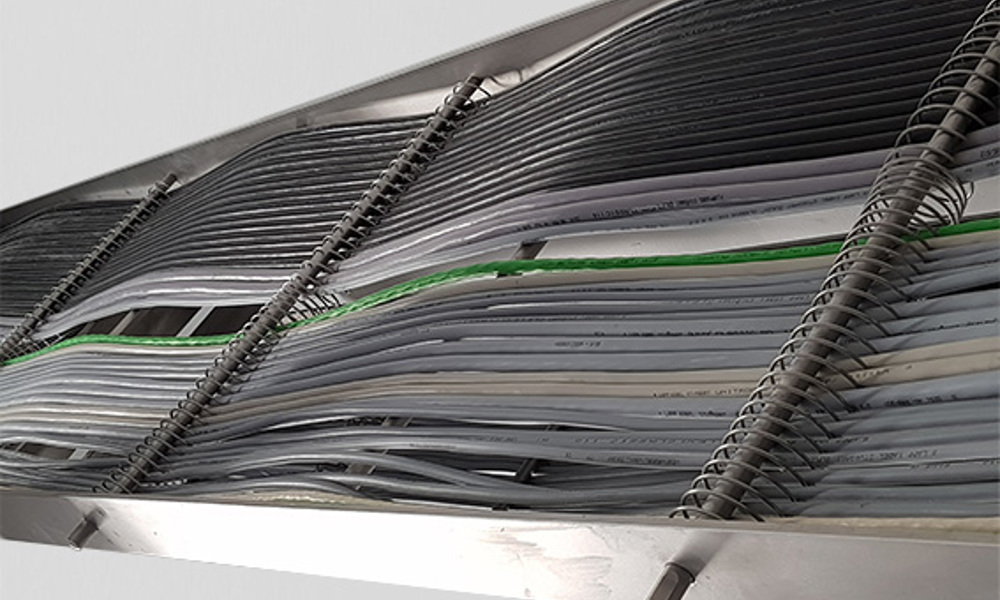

Streamline

Streamline is a "Medium Duty" cable ladder and ideally suited for use in the food and pharmaceutical industry.

As standard, the system is provided with coupling holes and the different parts are connected to each other by a coupling. If a seamless (welded) connection is desired, this system is also available without coupling holes.

Some unique features:
    • spans up to 3 meters
    • bottom profiles are pressed into side parts (no welding parts or loose parts)
    • available with coupling holes for coupling with coupling plates
    • available without coupling holes for a seamless (welded) connection

Pickling and passivation of welded stainless steel parts is a standard procedure at Gouda Holland.

Available in material types
AISI304 / AISI316


Available in material thickness (mm)

Available in heights (mm)


Brochures cable ladders;
Gouda Holland cable ladders

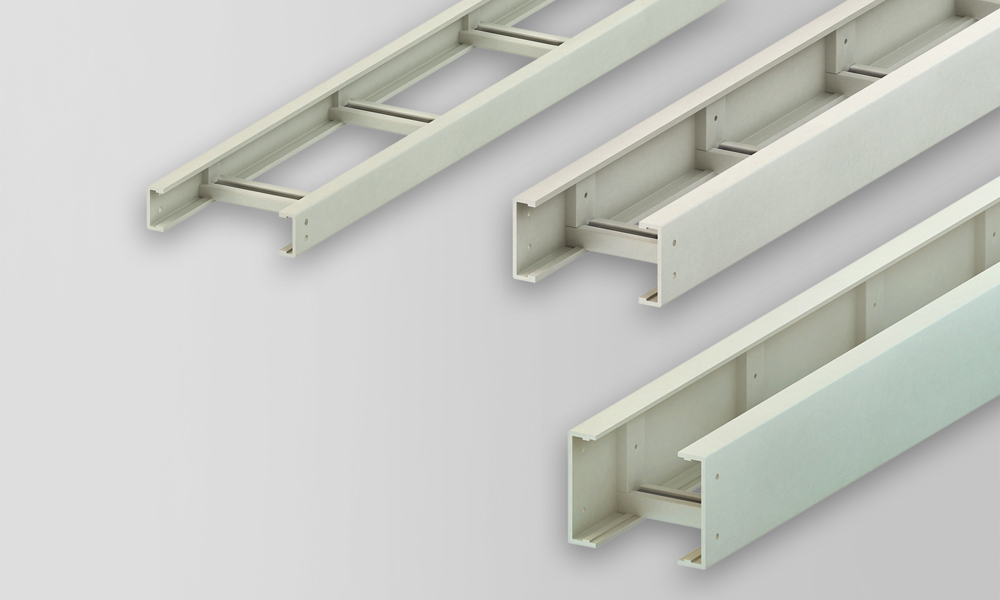

Poly

Poly (Niedax EBO) is a glass fiber reinforced polyester cable ladder and available in various series.

Glass fiber reinforced polyester has many powerful material properties. In addition to high UV, corrosion and chemical resistance, these products are also halogen-free.

Due to the low specific weight of the material, these products are easy to handle in transport.

There are two main techniques for making glass fiber reinforced polyester products, namely the drawn (pultrusion) and the pressed process (press molding).

EBO Systems, part of the NIEDAX GROUP, is one of the few companies that masters both techniques.

Some unique features:
    • no grounding necessary
    • halogen-free
    • fire retardant amd flame-extinguishing
    • low specific weight, easy to handle in transport
    • completely produced from thermoset (polyester)

Brochure Poly (EBO)
Poly (Niedax EBO)
